เตาเผาอุณหภูมิสูง Chamber Furnace รุ่น ELF 11/6 CARBOLITE-GERO ELF1106-230SN
รหัสสินค้า : ELF1106-230SN
| ราคา |
151,000.00 THB 167,000.00 THB (-10%) |
| จำนวนที่จะซื้อ | |
| ราคารวม | 151,000.00 THB |
สินค้าไม่เพียงพอ
สินค้าหมด
The ELF laboratory furnaces comprise 3 bench mounted models designed for light duty and general use up to 1100 °C.
• Max. Temp. 1100 °C
• Volume 6 liters
• Drop down door
• Ventilated via top mounted ceramic chimney
• Controller 301 with single ramp to setpoint
and timer
These laboratory furnaces have a simple drop down door and a top mounted ceramic chimney.
The combination of low thermal mass insulation and free radiating wire elements embedded in the chamber sides provide efficient heating.
Standard features
- 1100°C maximum operating temperature
- 6, 14 or 23 litre chamber volumes
- Drop down door with air gap to minimise external temperature
- Carbolite 301 controller, with single ramp to set-point & process timer
- Delayed start / process timer function as standard
- Vacuum formed, low thermal mass insulation
- Hard ceramic hearth fitted as standard
- Ventilated via top mounted ceramic chimney
Options (specify these at time of order)
- Over-temperature protection (recommended to protect valuable contents & for unattended operation)

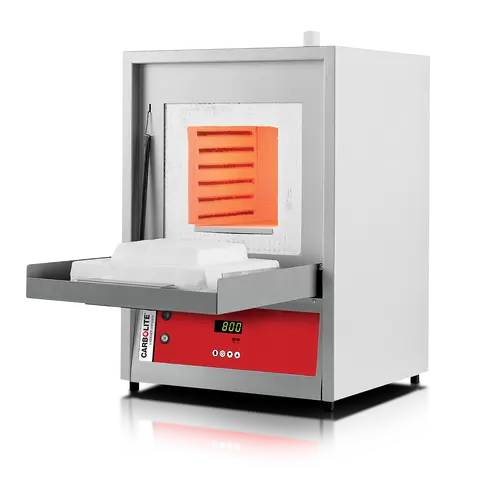

Laboratory Chamber Furnace - ELF
| ELF 11/6 | ELF 11/14 | ELF 11/23 | |
|---|---|---|---|
| Max temp (°C) | 1100 | 1100 | 1100 |
| Heat-up time (mins) | 28 | 43 | 26 |
| Max continuous operating temp (°C) | 1000 | 1000 | 1000 |
| Dimensions: Internal H x W x D (mm) | 165 x 180 x 210 | 210 x 220 x 310 | 235 x 255 x 400 |
| Dimensions: External H x W x D (mm) | 580 x 410 x 420 | 630 x 450 x 520 | 715 x 505 x 690 |
| Temperature uniformity of ± 5°C within H x W x D (mm) | 125 x 140 x 140 | 170 x 180 x 205 | 195 x 215 x 305 |
| Volume (litres) | 6 | 14 | 23 |
| Max power (W) | 2000 | 2600 | 5000 |
| Holding power (W) | 900 | 1300 | 1550 |
| Thermocouple type | K | K | K |
| Weight (kg) | 24 | 31 | 52 |
Please note
- Heat up rate is measured to 100°C below max, using an empty chamber
- Holding power is measured at continuous operating temperature
- External dimensions with door closed and including chimney
- The uniform volume is smaller than the total chamber volume
Content may be subject to modifications or corrections
